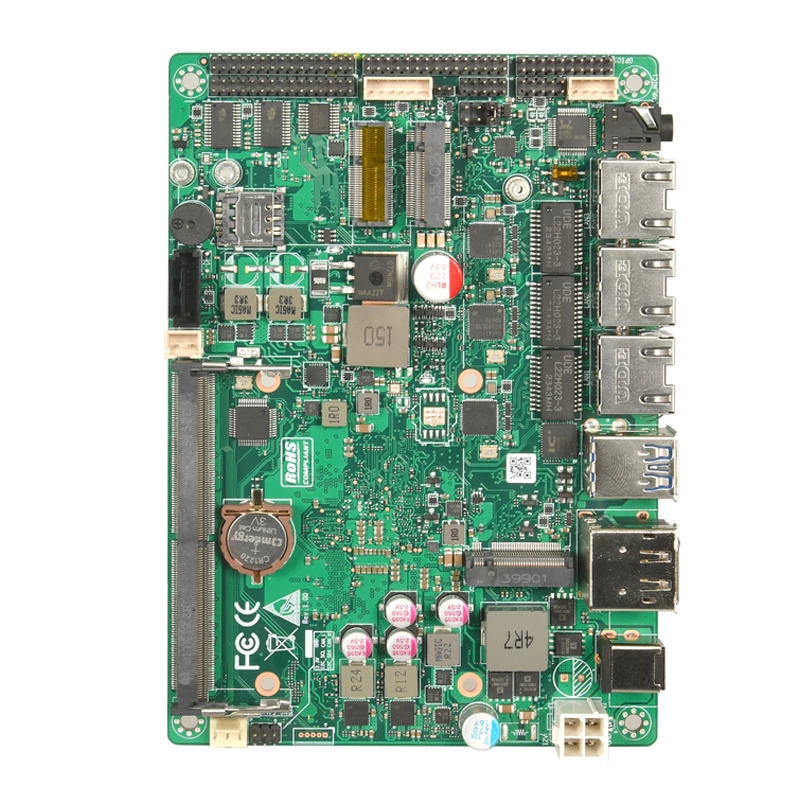

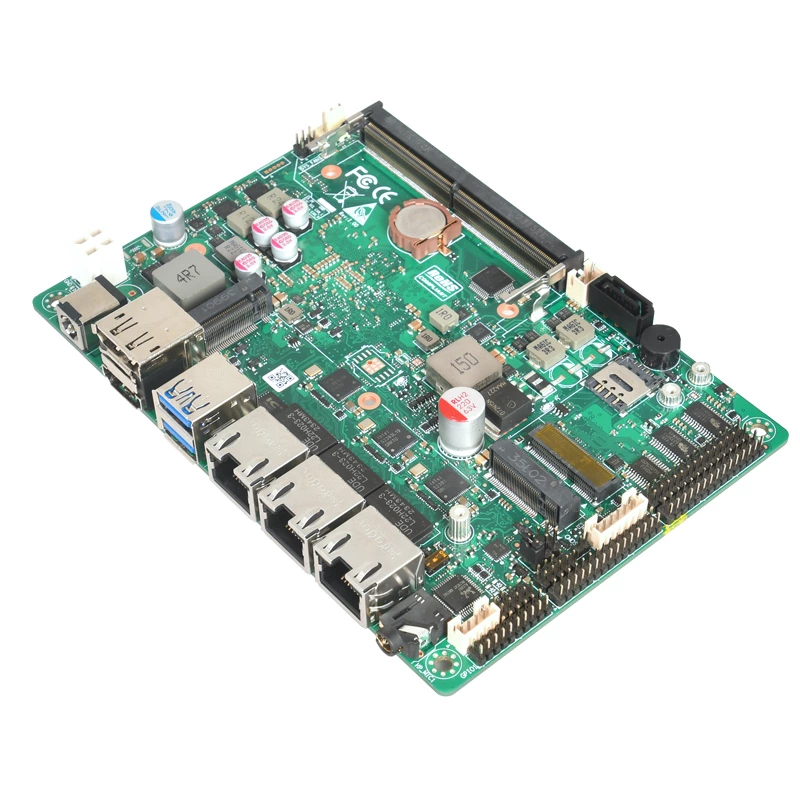

Alderlake-motherboard
Features
Features:
◆ Intel 12th generation Alder Lake-N Series Processor;
◆ 1*DDR5 4800MT/s SO-DIMM, Maximum 16GB;
◆ TPM2.0 optional, 1*HDMI, EDP/LVDS alternative;
◆ 3 x LAN, 6 x COM, 6 x USB, 8 x GPIO, 3 x M.2(SSD/WIFI/4G/5G), 1 x CAN, 1 x I2C;
◆ DC9-36V, wide voltage;
◆ 146x102mm;
- Model
- AD743AW
- Products Status
- In Stock
- Transport
- Express/Air/Sea/Railway
- Payment
- TT/Paypal/Credit Card/Western Union
- Product Origin
- Shenzhen China
|
Processor
|
Intel 12th generation Alder Lake -N series Processors;
|
|
EFI BIOS
|
|
|
Memory
|
1*DDR5 4800MT/ s SO-DIMM memory slot, up to 16GB
|
|
Display
|
1*HDMI 2.1; 1 x 24-bit LVDS (LVDS/eDP alternative); 1*DP1.4; |
|
Storage
|
1*M.2 KEY-M 2280 (PCIe_X 2 NVMe) |
| 1*7Pin SATA3.0, SATA power supply 5V 2Pin | |
|

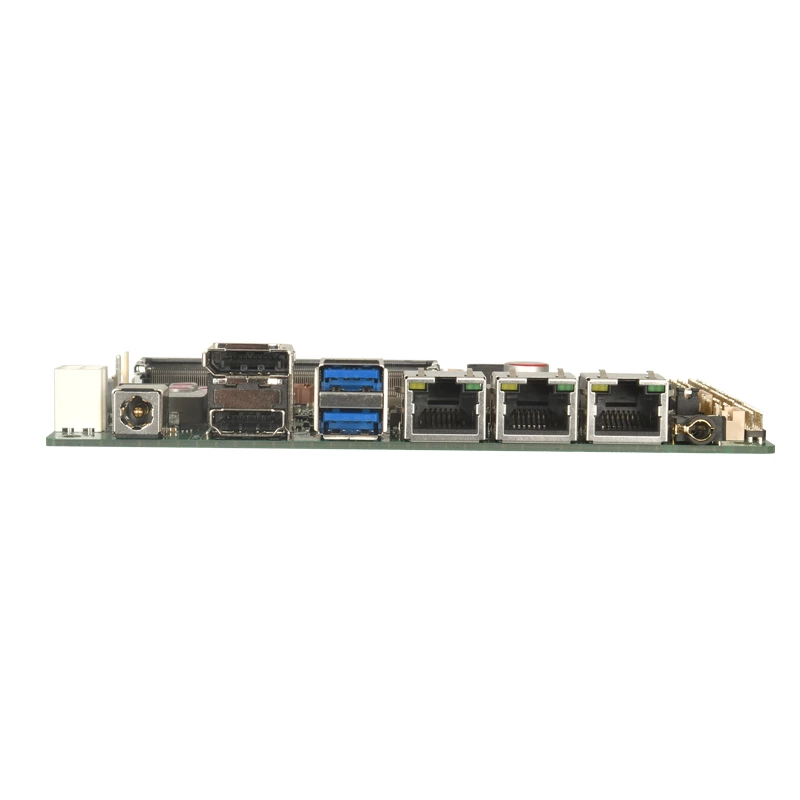

Board edge I/O
interface
|
1*DC interface, 1*DP 1.4, 1*HDMI 2.1, 2*USB3, 3*RJ45 network ports (3*i226-V, LAN2, LAN3 support POE power supply, 15W), 1*two-in-one audio
|
|
Extended
interface/function
|
1*TPM2.0 (chip optional, not included by default) |
| 1*M.2 KEY-B (PCIe+USB3.0, 4G/5G module), 1*SIM card slot | |
| 1*M.2 KEY-E (PCIE_X1, USB2.0) | |
| 1*CAN+I2C 2*3PIN, pitch 2.0 | |
|
6*COM, 2*5Pin, pitch 2.0 (COM1 and COM2 default to RS232, RS485/RS422 can be selected through BIOS, and the other 4*RS232)
|
|
| 1*SPK, 1*4Pin pitch 2.0 | |
| 1*CL_CMOS, 1*2Pin, pitch 2.0 | |
| 2*USB2.0 pin headers, 2*5Pin, pitch 2.0 | |
|
1*CPU Smart FAN, 4Pin; 1*system fan, 3Pin, pitch 2.54
|
|
| 1*F_Panel, 2*5 Pin, pitch 2.0mm | |
| 1*8-bit GPIO pin, 2*5Pin, pitch 2.0mm | |
| 1*AT/ATX, 1*2Pin, pitch 2.0 | |
|
Power Supply
|
DC9-36V, wide voltage
|
|
Working
Environment
|
Working temperature: -20℃ ~ +60℃;
Working humidity: 0% ~ 90% relative humidity, no condensation
|
|
Storage temperature: -40℃ ~ +85℃;
Storage humidity: 0% ~ 90% relative humidity, no condensation
|
|
|
Operating System
|
Windows10, windows11, Linux
|
|

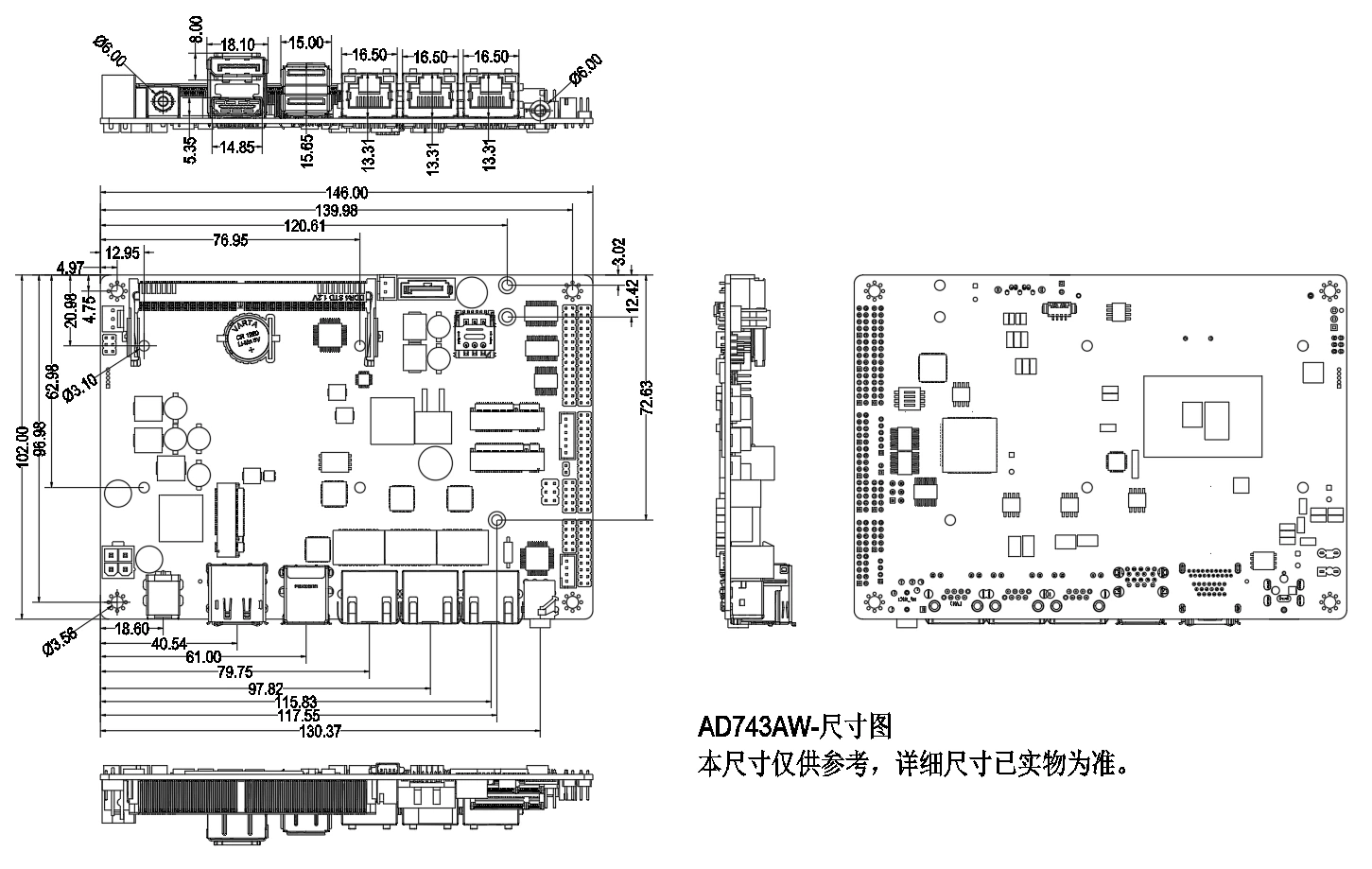

Size
|
146*102 mm
|
|
Weight
|
Excluding radiator 160g
|
