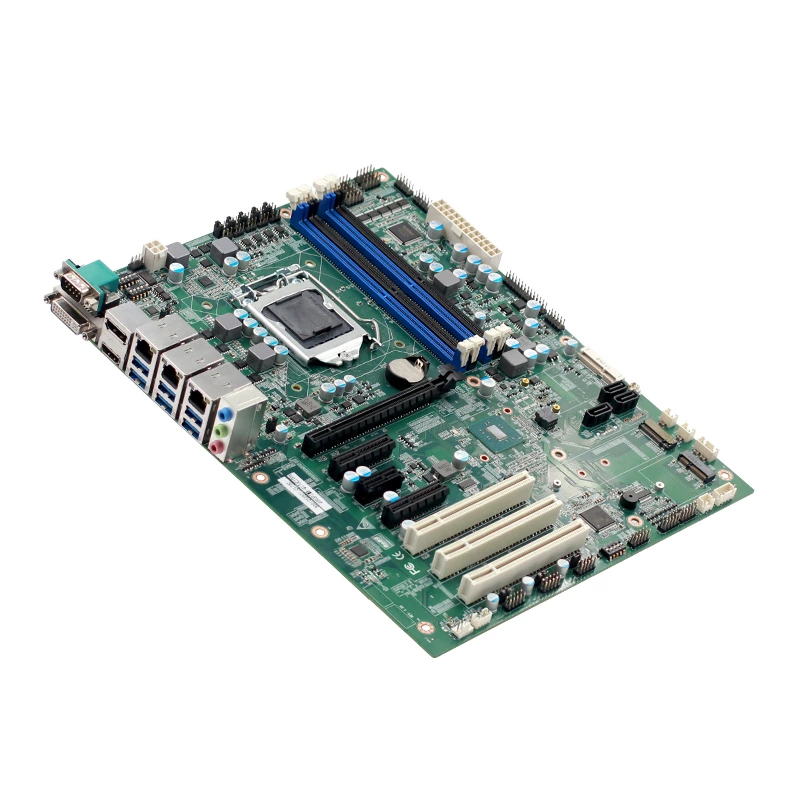

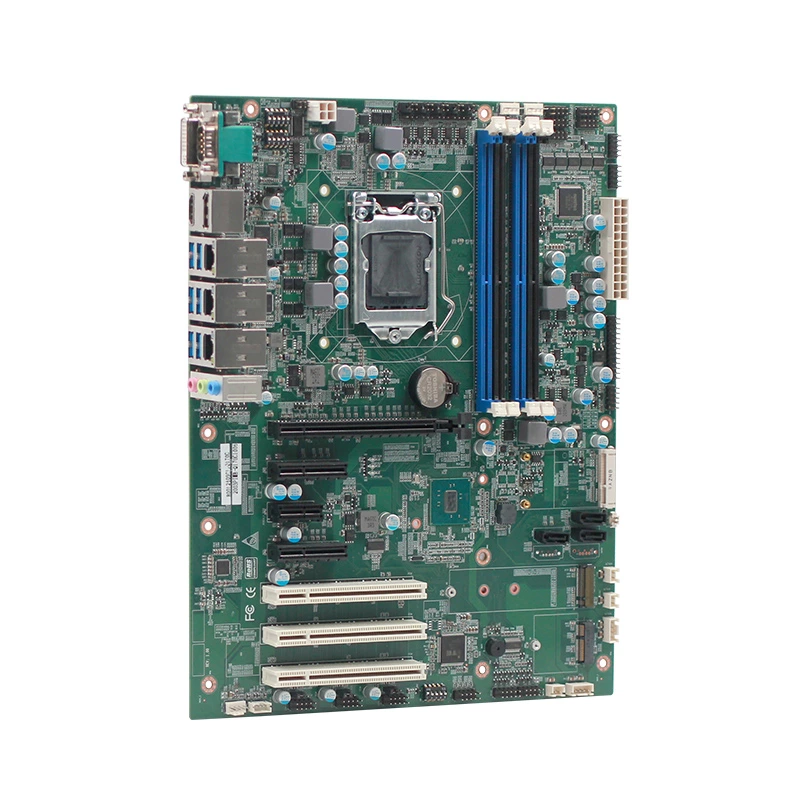

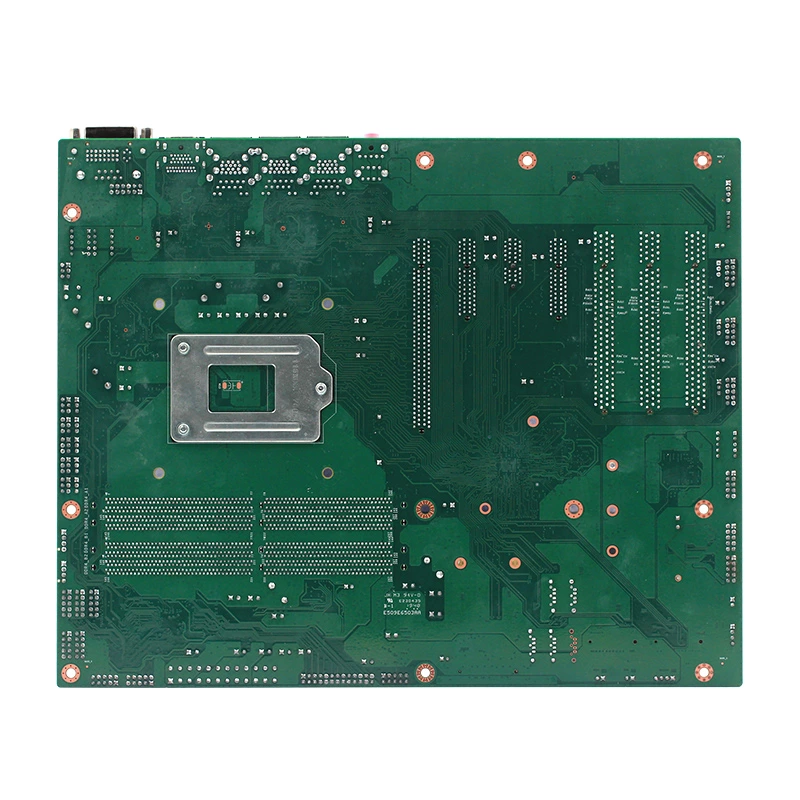

PIMB-Q170C
Features
◆ Support LGA115 port Intel 6th and 7thi3-i5-i7/Pentium/Celeron CPU
◆ Q170 high-speed chipset
◆ 4*DDR4 ram socket, support DDR4 2133Mhz support dual channel
◆ 1*VGA 1*HDMI 1*DP 1*DVI (support three type display, HDMI and DP support 4096*2304 4K output display)
◆ 1*PCIE_X16 2*PCIE_X4 1*PCIE_X1; 3*PCI
◆ support Intel AMT Active management technology (Need to use a CPU that supports Vpro and I219-LM network card)
◆ ATX power supply
- Model
- PIMB-Q170C
- Products Status
- In Stock
- Transport
- Express/Air/Sea/Railway
- Payment
- TT/Paypal/Credit Card/Western Union
- Product Origin
- Shenzhen China
|
|
CPU |
Support LGA115 port Intel 6th and 7thi3-i5-i7/Pentium/Celeron CPU |
|
CPU Package |
LGA1151 |
|
|
Chipset |
Q170 |
|
|
BIOS |
EFI BIOS |
|
|
Memory |
Technology framework |
Dual channel DDR4 2133/2400MHz |
|
socket |
4*DDR4 Ram socket ，Max support 64G |
|
|
Video |
Graphic controller |
Intel HD Graphics 630((According to CPU model) |
|
VGA |
2*6,2.54mm pin header ，max support resolution 2048*1536@50Hz |
|
|
HDMI |
max support resolution（HDMI1.4）4096*2304@24Hz |
|
|
DP |
max support resolution 4096*2304@60Hz |
|
|
DVI |
max support resolution 1920*1200@60Hz |
|
|
Three display support |
Support Three-screen sync or asynchronous display |
|
|

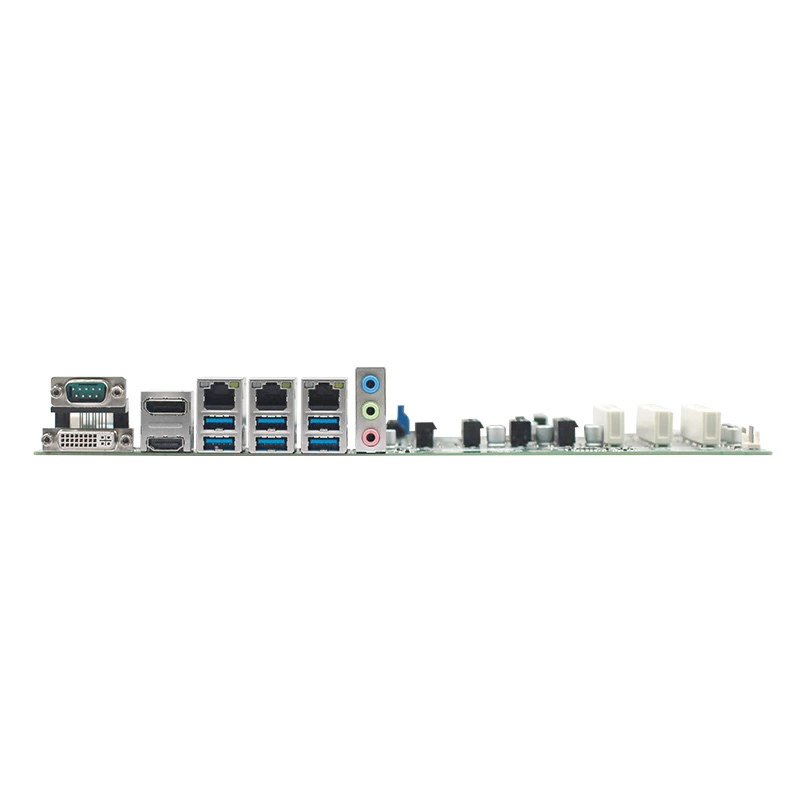

I/O panel |
Ports |
1*DP,1*HDMI,1*DVI 3*LAN,6*USB3.0 1*MIC-OUT/LINE-OUT/LINE IN |
|
Internet |
Controller |
2*Intel I211AT Gigabit Ethernet ,1*Intel I219-LM Gigabit Ethernet |
|
Audio |
Controller |
Realtek HD ALC269Q-VB audio decoding (LINE-OUT+MIC_IN+LINE-IN+SPKOUT) |
|
Super I/O |
Controller |
NCT6106D |
|
Hardware control |
Watchdog & Timer |
0-255秒,provide Watchdog code |
|
Input/Output Interface |
USB |
6*USB3.0 compatible USB2.0 / 1.1，6*USB2.0,max support +5V/1.5A |
|
Com port |
COM1 can be selected as RS232 / RS485 / RS422 (DB9 interface) through DIP switch and BIOS settings, COM2, 3, 4, 5, 6 can be selected as RS232 or RS485 (pin header) through jumper cap and BIOS |
|
|
LPT port |
1*LPT |
|
|
PS/2 |
1*PS/2 pin header port |
|
|
GPIO |
2*8位,providing routines, freely defined input / output,,5V@24mA level |
|
|
Expansion Bus |
Mini-PCle |
1*Mini-PCIe socket,support PCIe device |
|
PCIE |
1*PCIEx16 socket，2*PCIEx4 socket,1*PCIEx1 socket |
|
|
PCI |
3*PCI socket |
|
|
M.2 |
1*Key M:2242/2260/2280 SATA Bus interface，1*Key E：2230 port（WIFI） |
|
|
Storage |
SATA |
4*standard SATAIII接口,最大传输速率6Gb/s |
|
Power supply |
Power Type |
ATX power supply |
|
Working temperature |
Working temperature |
-20℃ ~ +60℃ |
|
Storage temperature |
-40℃ ~ +85℃ |
|
|
Working humidity |
0% ~ 90% (non-condensing) |
|
|
Storage humidity |
0% ~ 90% (non-condensing) |
|
|
System |
Windows7 Windows10 Linux |
|
|
size |
Size |
305x244 mm |
|
Weight |
0.5KG |
|
|
Certification |
CE,RoHS,FCC |
